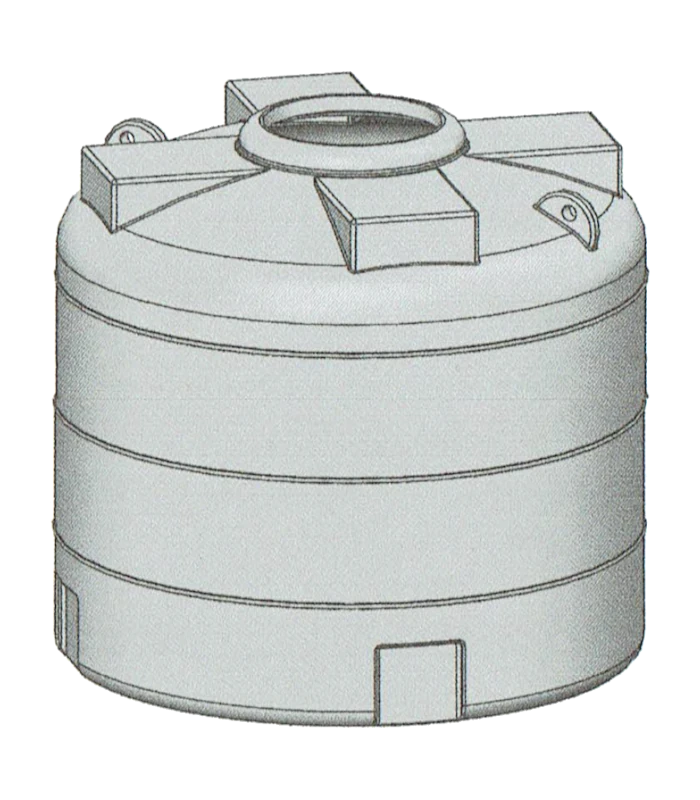

1500 liter vertical storage tank

1500 liter polyethylene vertical storage tank in standard neutral colour, vacuum relief vent and screwed lid. Double wall version available. Double wall version available.

SKU: 15CV Category:
Description

The tanks and the external jacket are made by our company with rotational molding in 100% polyethylene.

The double-walled version increases safety and limits damage in the event of a spill, protecting the safety of operators and the environment.

Solid and long-lasting polyethylene tanks.
  • Available in 14 days
  • All tanks are available in the double-wall version
  • Increases security
  • 100% made in polyethylene, rotomoyulded without welding
  • Lightweight, very resistant and long-lasting
  • See the instructions for use

Resistant to most acids, bases and oils

100% recyclable

Easy to clean

Solid and resistant

The external cistern (glass or jacket or double wall)

More and more often, for safety and prevention reasons, storage tanks are requested in the double-walled version, in which the tank is inserted into an external secondary containment tank.
This solution increases security.
In this version both loading and unloading are carried out from above.

Accessories

  • Lid, gasket
  • Vent
  • Loading and unloading stubs
  • Suction tube for drain
  • Float level
Data Sheet
Sku 15CV
Dimensions (L x W x H) 130 × 130 × 122 cm
Colors

Neutral

Capacity

1000 L

Tank thickness

Depending on the type of product to be stored and its specific weight

Weight

Depending on the specific weight of the liquid to be stored

Hatch

Diameter 20 cm

Chemical resistance

Excellent resistance to most acids, bases and oils
Numerous polyethylene compatibility tables are available on the internet

Material

100% UV stabilized virgin polyethylene for outdoor use 100% recyclable.

Movement

Tanks must be moved empty

Transport - Warehouse

Tanks are stackable 4 or 5 pieces

INSTRUCTIONS FOR USE

Important

  • Always check the chemical compatibility and specific weight of the product to be stored in the polyethylene tank. Consult one of the numerous chemical compatibility tables available on the internet
  • Compliance with safety regulations during transport and installation
  • Place the tank on a horizontal, rigid and smooth, non-grilled surface
  • It is important to protect the pipes and valves from accidental impacts
  • Do not place the tank near heat sources. The tank is produced to be used up to temperatures of 45° C
  • After the exhaust valve, install a flexible joint (an expansion compensator or a flexible hose)
  • Do not climb onto the tank dome
  • Periodically check the tank and the efficiency of the accessories: valves, gaskets, vents, loading, pipes, connections, hydraulic guard
